AVLWP01A-L

Description

Access / Return Air Panel – Insulated with Louvered Door

The Access/Return Air Panel is designed for convenient filter access while helping reduce operational noise. Each panel is insulated for sound attenuation and secured with tamper-proof screws for added durability and safety.

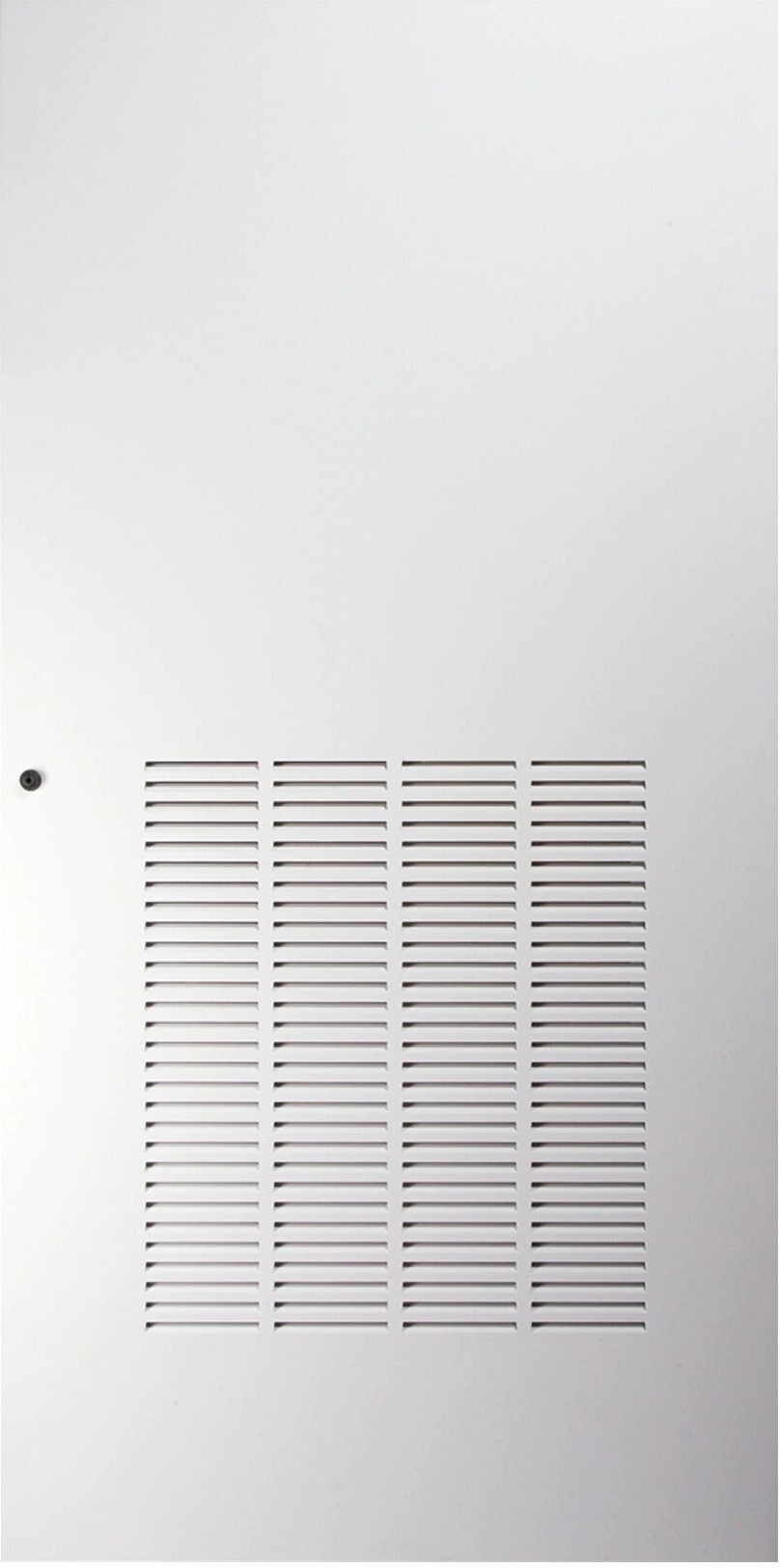

The Louvered Access/Return Air Panel (AVLWP01A-L) features a left-hinged access door, allowing quick and easy access to the filter. The return air grille is positioned low on the door, and a 25″ x 20″ field-supplied filter mounts on the interior side of the panel door.

These panels are available with either left- or right-side hinges to accommodate different installation needs. For 24,000 BTU units, a left-hinge configuration is recommended when the return air openings are positioned low on the door. The included kit also contains a hinge bracket, allowing installers to mount the door with return air openings either high or low to achieve optimal sound attenuation.

Dimensions

• Door Size: 58″ H x 29″ W
• Cutout Size: 55.75″ H x 27″ W

This panel provides a practical solution for easy filter access, flexible installation, and improved acoustic performance.
